GT35W8 Linear Actuators Supplier Solutions

GT35W8 linear actuator for wheelchairs is a versatile 12V electric actuator that combines strength and precision for various applications. With a 1000N force capacity, it provides reliable linear motion, making it ideal for tasks such as height adjustment in wheelchairs or operating heavy-duty systems. Its 1000mm stroke length offers ample travel for large adjustments, while the waterproof feature ensures it performs well in moisture-prone environments, making it a trusted solution for medical equipment.

BESTOP linear actuator

In medical settings, the GT35W8 electric actuator 12v is a key component in infant incubators, operation tables, and ophthalmic workstations. Its smooth and precise motion allows for seamless adjustments in height and position, essential for patient care and medical procedures. 1000MM linear actuator design ensures it operates reliably even in environments where moisture exposure is common, such as in operating rooms or medical equipment used around patients. The 1000n linear actuator durability and strength support long-term, high-performance use in critical applications.

GT35W8 Description

Voltage : 12 VDC
Stroke : 25-1000mm
Max. load: 1000N
Load in push: 1000N, 750N, 500N, 250N, 125N, 70N
Load in pull: 1000N、750N、500N、250N、125N、70N
Color: silver gray
IP grade: Max. IPX6
Stroke length:
Common：25-1020mm（in steps of 4mm）
With dual hall sensor：25-1020mm（in steps of 4mm）
With potentiometer：
1000N：25-520mm（in steps of 4mm）
750N：25-800mm（in steps of 4mm）
≤500N：25-1000mm（in steps of 4mm）

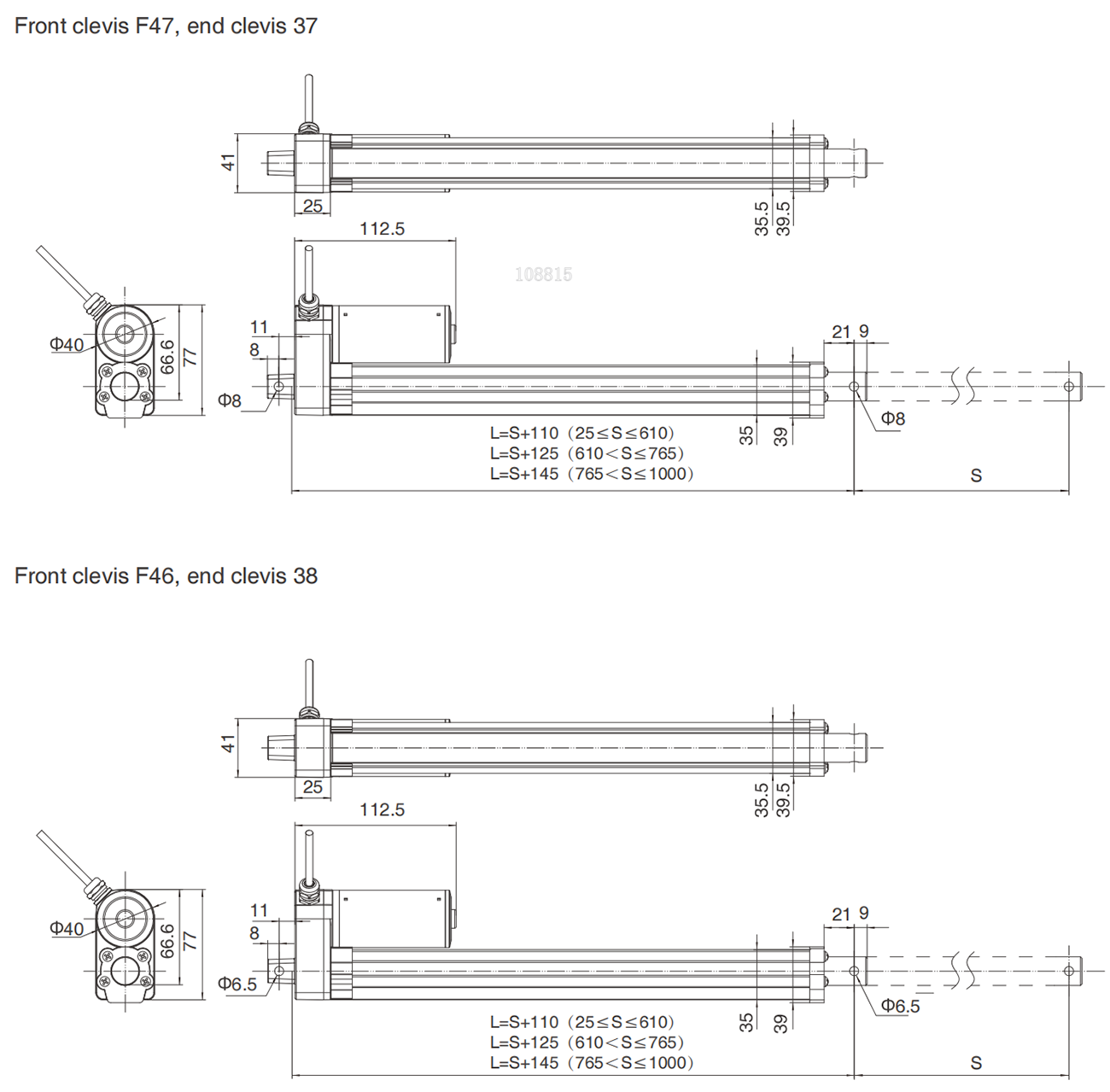

Standard installation dimension：(can be customized)
Common and With dual hall sensor：
L=S+110（25≤S≤610）
L=S+125（610＜S≤765）
L=S+145（765＜S≤1000）
With potentiometer：
L=S+145（25≤S≤610）
L=S+160（610＜S≤765）
L=S+180（765＜S≤1000）
Noise level ≤55dB（ambient noise level≤40dB）
Hall sensor: optional
With potentiometer:optional
Built-in limit switch
Weight: 1kg（differences in stroke/installation dimension）
Static bending moment: no lateral load

GT35W8 linear actuator application

GT35W8’s heavy-duty 1000N capacity and 1000mm stroke make it a perfect fit for toilet lifts and other accessibility solutions. Its quiet, smooth movement makes it suitable for applications that require gentle adjustments, such as in patient lifts and mobility devices. This waterproof electric actuator ensures long-lasting, reliable operation in various settings, from hospitals to home care environments. Its precision and durability make it a trusted solution for both medical and accessibility applications.
