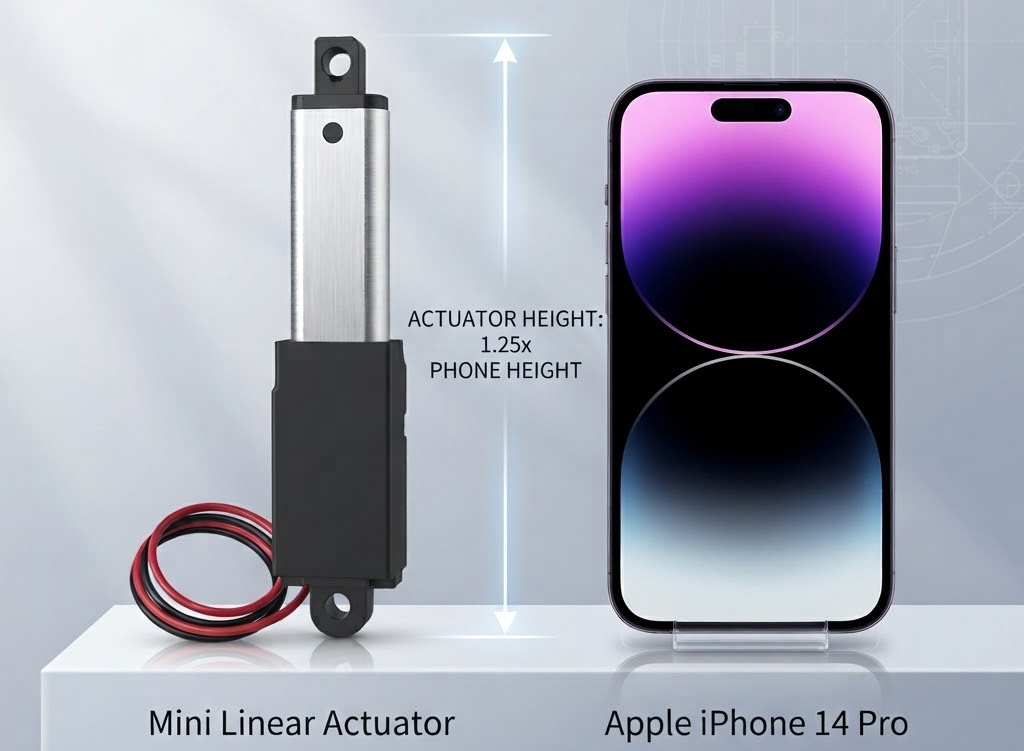

Introduction to Electric Micro Linear Actuators: The Unseen Engine of Precision
In a semiconductor cleanroom, hundreds of devices smaller than your finger position silicon wafers with micron accuracy. In a surgical robotics lab, similar components simulate delicate retinal operations. Inside your smartphone, an even smaller version controls lens autofocus. These are all electric micro linear actuators – the silent workhorses of modern precision industry.
Unlike hydraulic or pneumatic systems that rely on fluids or compressed air – which are prone to leaks, noise, and poor controllability – electric linear actuators offer clean, quiet, and digitally precise motion. They eliminate bulky compressors and oil pumps, making them the undisputed choice for cleanrooms, medical devices, and compact robotics.
According to QYResearch, the global micro linear actuator market reached $1.225 billion in 2025 and is projected to exceed $2.159 billion by 2032 (CAGR 8.6%). Behind this growth stands BESTOP – China's No.1 manufacturer of mini linear actuators – leading with proprietary core technologies and full-chain production.
Chapter 1: Electric Micro Linear Actuator Technology – Beyond Miniaturization
A miniature linear actuator is not just a scaled-down motor. Achieving stable thrust and micron positioning within millimetre spaces requires breakthroughs in electromagnetic design, materials, and ultra-precision manufacturing – all driven by electric drive principles (stepper, brushless DC, or voice coil).
1.1 Four Main Types of Electric Micro Linear Actuators
Different applications call for different electric drive architectures. Here are the four dominant types used in today's micro linear actuators:
| Electric Type | Working Principle | Key Advantages | Best Applications |
|---|---|---|---|
| Stepper + Lead Screw | Permanent magnet stepper rotates a lead screw | Low cost, holding torque at standstill, simple open-loop control | Smart home, low-cost automation, medical pumps |
| Brushless DC + Ball Screw | BLDC motor with encoder feedback driving a ball screw | High speed, long life, efficient closed-loop control | Robotics, pick-and-place, general industrial |
| Ironless Linear Motor | Iron-free coil directly interacts with magnetic track – zero cogging | Zero cogging, ultra-smooth motion, millisecond response | Semiconductor inspection, laser processing, optical alignment |
| Voice Coil Actuator | Lorentz force – coil moves in a magnetic gap | Precise force control, smooth "soft-landing" | Medical valve control, miniature vibration tables |
Among these, ironless electric linear motors are the fastest-growing segment, with global production reaching 580,000 units in 2025. Their moving part is 40% lighter than iron-core types, enabling response times under 10ms, and the absence of cogging improves motion smoothness by over 60% – critical for semiconductor metrology.
1.2 Six Performance Parameters for Electric Mini Linear Actuators
To select the right electric mini linear actuator, evaluate these six specifications:
① Thrust (Peak & Continuous)
Standard electric micro linear actuators deliver up to 115N; high-end versions reach 2,000N. Always match both peak and continuous loads to avoid thermal failure.
② Speed & Stroke
Typical speeds: 5–200 mm/s (premium: 330 mm/s). Strokes from a few mm to over 200 mm. Choose based on your cycle time and space.
③ Positioning Accuracy & Repeatability
- Accuracy: single-move deviation from target.
- Repeatability: deviation over multiple cycles – the key reliability metric.
- Industrial mini linear actuators offer repeatability within ±0.02 mm; high-precision versions reach ±0.002 mm (2 µm), with top resolutions down to 0.6 µm.
④ Back EMF
Limits maximum speed – critical for high-velocity electric motors.
⑤ Motor Constant
Efficiency of converting electrical power to mechanical force – lower values mean excess heat.
⑥ Thermal Resistance
Most miniature linear actuators are rated at just a few watts (e.g., 2W). Thermal design dictates continuous duty cycle and lifespan.
Chapter 2: Applications of Electric Micro Linear Actuators – From Life-Saving to Everyday
The use cases for electric micro linear actuators span industries. Here are four sectors where these compact electric powerhouses drive transformation.
2.1 Medical: Precision That Saves Lives
- Insulin pumps – electric actuators deliver drug doses with error < 0.01 mL.
- Surgical robots – electric micro drives power end-effectors for minimally invasive surgery.
- Prosthetics – from finger joints to wrist rotation, miniature linear actuators make artificial limbs more natural.
- MRI-compatible devices – non-magnetic piezoelectric electric actuators operate safely in strong magnetic fields.
2.2 Semiconductor: The Ultimate Test of Motion Purity
- Wafer handling & alignment – ironless electric motors preferred for zero force ripple.
- Laser dicing & optical inspection – smooth electric motion prevents vibration-induced yield loss.
- Surface mount & AOI – compact electric stages integrated into pick-and-place systems.
2.3 Robotics – From Joints to Muscles
- Humanoid robots – micro linear actuators drive finger joints and wrists. Top robotics firms co-develop solutions with leading electric actuator manufacturers.
- Miniature climbing robots – small footprint enables confined-space mobility.
- Lab automation – core drive for micro-pumps and liquid handling.
2.4 Consumer Electronics & Smart Living
- Smartphone OIS & autofocus – highest-volume application for miniature linear actuators.
- Smart home – electric furniture lifts, automatic curtains, smart locks.
- Wearables – haptic feedback and health-sensing modules.
Chapter 3: How to Select the Right Electric Mini Linear Actuator – Step-by-Step
Choosing a mini linear actuator requires rigorous engineering judgment. BESTOP recommends this 4-step electric actuator selection methodology.
Step 1 – Physical & Electrical Constraints
"First, see if it fits" – the golden rule.
- Envelope: measure retracted and extended dimensions.
- Mounting: flange, foot, or custom.
- Power: voltage (typically 5–24V DC) and available current.
Step 2 – Performance Requirements
"Then, see if it can push" – performance matching.
- Load: distinguish peak vs. continuous. Select an electric actuator whose continuous thrust exceeds steady-state load.
- Duty cycle: high duty requires robust thermal management.
- Stroke & speed: match to motion profile.
Step 3 – Environment & Reliability
- IP rating: medical/outdoor often require IP54+.
- Side load: electric micro linear actuators are weak against radial forces – always use external guides.
- Temperature & vibration: ambient swings affect accuracy; reinforce for harsh conditions.
Step 4 – Control & Feedback
- Open-loop vs. closed-loop: closed-loop (encoder) mandatory for high precision.
- Feedback: optical scales (nanometre) vs. magnetic scales (micron) – choose what you truly need.
- Interface: PWM, RS485, ModBus, EtherCAT – ensure host compatibility.
Chapter 4: Future Trends in Electric Micro Linear Actuators
4.1 Integration & Intelligence
Industry 4.0 demands electric actuators that "think". Integrated sensors and predictive maintenance algorithms pre-empt wear patterns, minimizing downtime.
4.2 Ironless Technology Goes Mainstream
In 2025, ironless and flat-type electric linear motors accounted for over 55% of the micro linear actuator market, driven by semiconductor and medical demand.
4.3 Pushing Miniaturization Limits
The market for micron-level ironless U-channel electric motors reached $140 million in 2025. Halbach arrays and additive manufacturing are pushing physical boundaries.
4.4 Supply Chain Reshaping
Tariff changes prompt OEMs to seek Asia-Pacific suppliers with in-house assembly and tariff-free access – a major opportunity for leading Chinese electric actuator manufacturers like BESTOP.
Conclusion: Why Electric Micro Linear Actuators Drive Modern Precision
From surgical tables to semiconductor fabs, electric micro linear actuators are the foundation of modern technological civilisation. Clean, quiet, and digitally precise, they outperform hydraulic and pneumatic alternatives in every metric that matters for compact, high-stakes environments.
As China's No.1 manufacturer of mini linear actuators, BESTOP delivers high-performance, high-reliability miniature linear actuators through proprietary electric drive technologies and world-class quality. We believe true competitiveness lies in how small, precise, and reliable we can make your motion solution.
