GT35N8 Electric Piston Actuator

  1. Home
  2. »
  3. Medical Care
  4. »
  5. GT35N8 Electric Piston Actuator

Table of Contents



  • Load in push:2500N,2000N,1500N,800N,500N
  • Load in pull:900N
  • Color: Gray
  • IP grade:  Max. IPX6
  • Stroke length:2500N:50-300mm (in steps of 4mm)2000N:50-300mm (in steps of 4mm)1500N:50-300mm (in steps of 4mm)800N:50-300mm (in steps of 4mm)500N:50-300mm (in steps of 4mm)

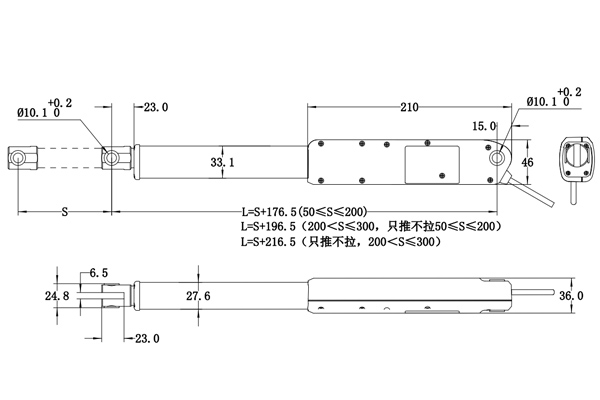

  • Installation dimensions:L=S+170(50≤S≤200, standard)L=S+190(200<S≤300, standard; 50≤S≤200, only push)L=S+210(200<S≤300, only push)
  • Noise level: ≤58dB, ( environmental noise≤40dB)
  • Safety nut: optional
  • Only push : optional
  • Built-in electrical limit switch
  • Weight: About 0.8kg (different stroke length and installation dimensions with different weight )
  • Static bending moment: lateral load are not allowed
